The XOMOX®XLB ball valve is able to reduce the total cost of ownership by a reduced spare part count and minimize service turnaround time in the field by strictly following a modular design that adheres to commonly accepted standards (ASME, EN and JIS).

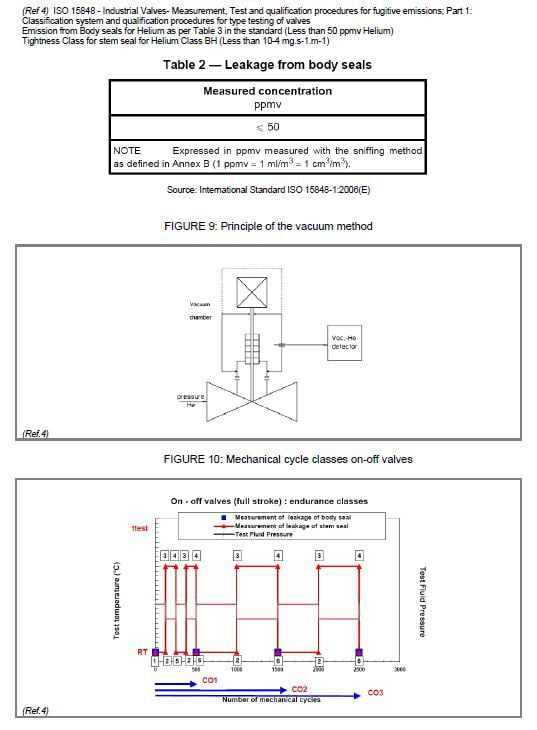

SEAL TESTING Industry standards and legislation imposed for limiting or minimizing emissions are becoming increasingly demanding for industrial plants worldwide. Leakage of critical media, or leakage of media with the consequence of energy losses, are no longer tolerated. To be sure, the new design met the highest regulatory standards; it was tested against the strict industry standard, ISO 15848-1, temperature class 200° C (400° F), through 2,500 mechanical cycles. The valve was entirely enclosed in an environmental chamber during temperature & pressure cycling, actuated through the sidewall, and leakage detection was done continuously.
Stem-sealing tightness class BH (10-4 mg/s/m) was achieved during vacuum Helium test method as per ISO 15848-1. XLB® performance class: BH-C03- SSA1-t(-20°C,200°C)-PN16/CL150-ISO 15848-1.
THE XOMOX®XLB'S PERFORMANCE MET OR EXCEEDED THE MENTIONED INDUSTRY STANDARDS, PREVENTING LEAKAGE AT ALL STAGES OF TESTING.
