Chemical Applications ISO 15848-1 Standard
The first sleeved plug valve able to withstand four (4) thermal cycles with ZERO packing adjustments meeting ISO 15848-1 BH CO3 392°F/200°C SSA 0
Innovative stem seal design permits best in class FUGITIVE EMISSIONS CONTROL.
Live-loaded design optimizes sealing performance (self-adjusted) and extended service life with ZERO PACKING ADJUSTMENTS through thermal cycling.
Maintenance and cavity-free - no costly lubrication, no sticking, and no contamination of process media.

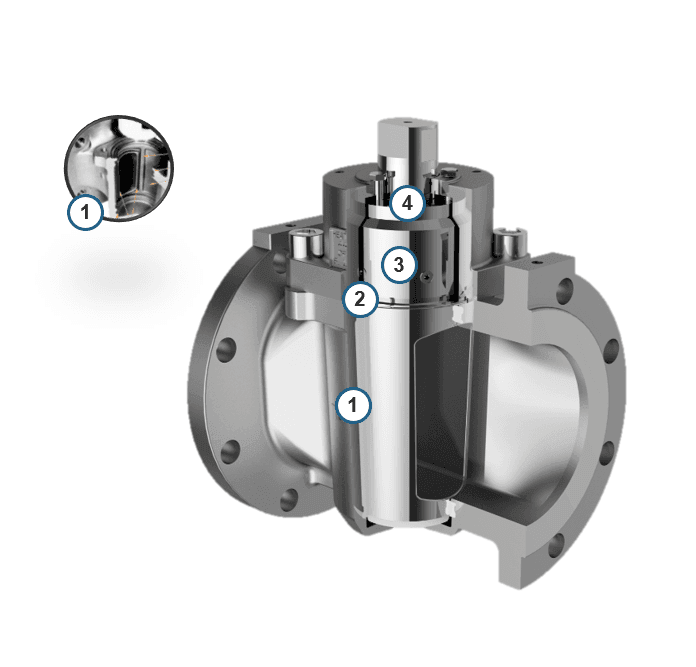

1. Primary Seal to Atmosphere
The XP3 utilizes the same proven sleeve and body design for which XOMOX is known. 360° port lips and high-pressure ribs inside the valve body ensure tight in-line seal & primary seal to atmosphere. Plug remains adjustable as necessary.
2. Secondary Seal to Atmosphere
Improved design enabled by our standard wedge ring and plastic diaphragm, provides another layer of protection to stem seal and body cover joint.
3. Tertiary Seal to Atmosphere

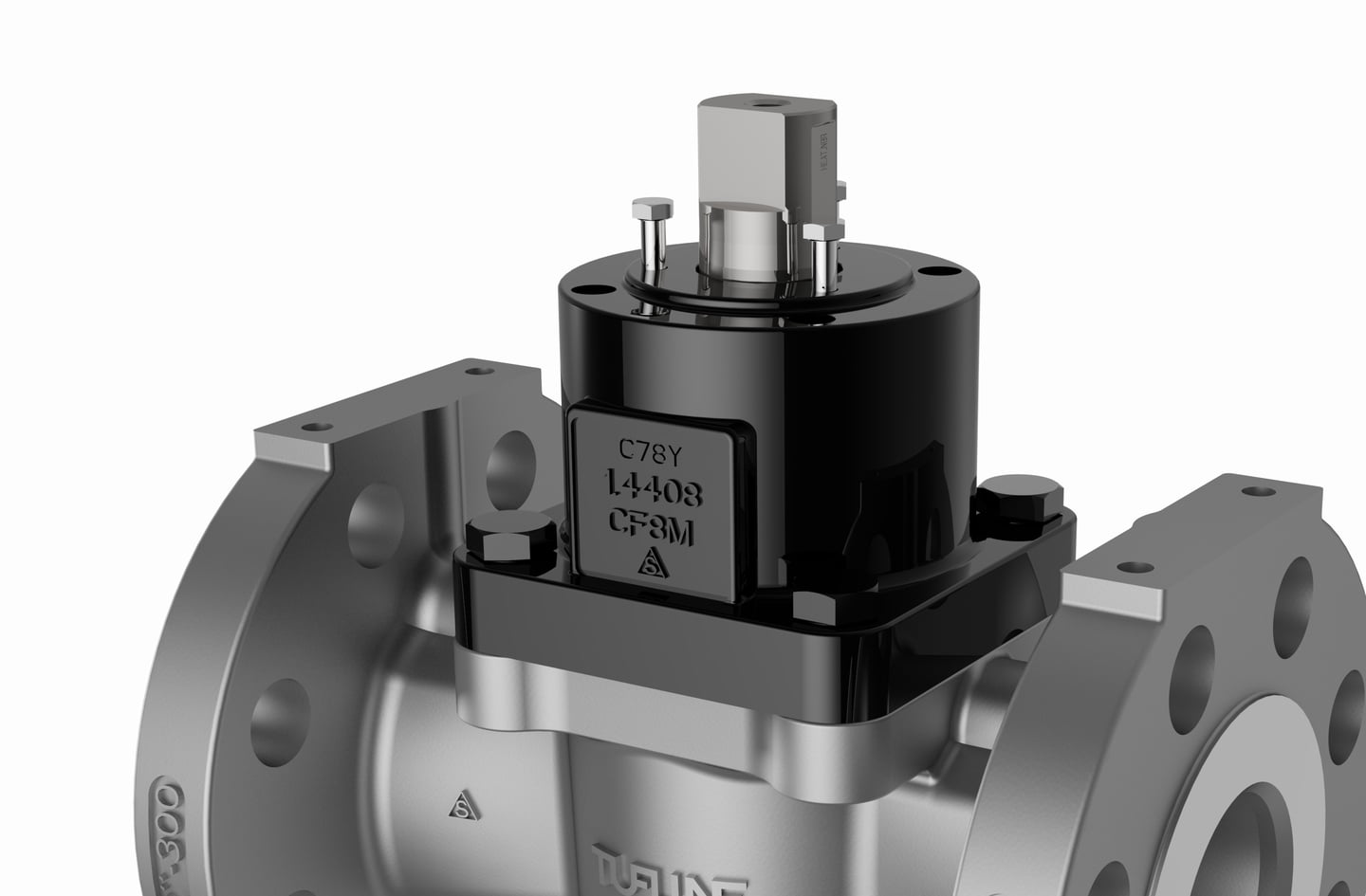

NEW Live-loaded stem cartridge delivers world-class Low E performance in a quarter-turn soft-seated plug valve.
4. Packing Options
Stem packing can be changed depending on operating conditions. Various packing options are available.

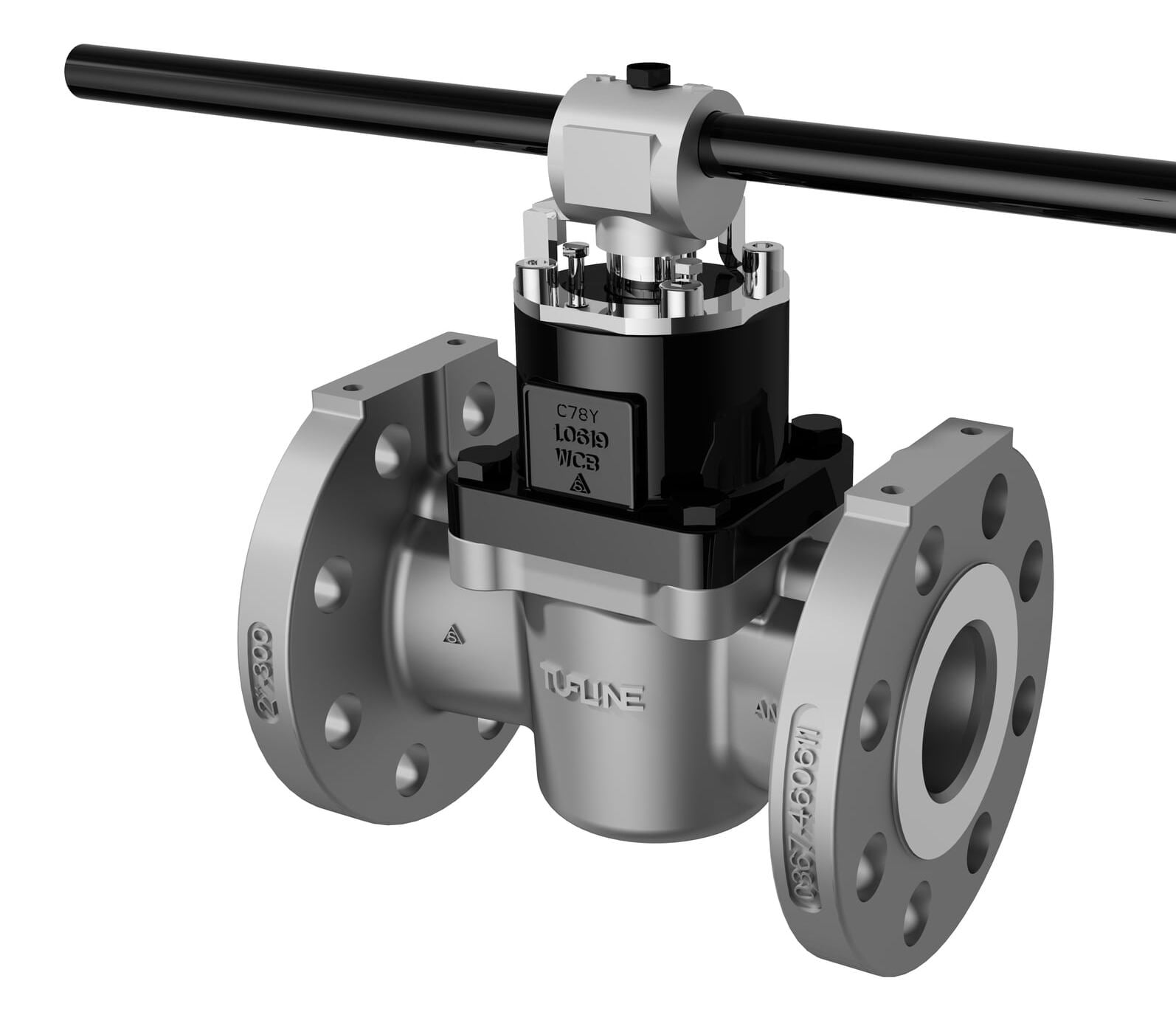

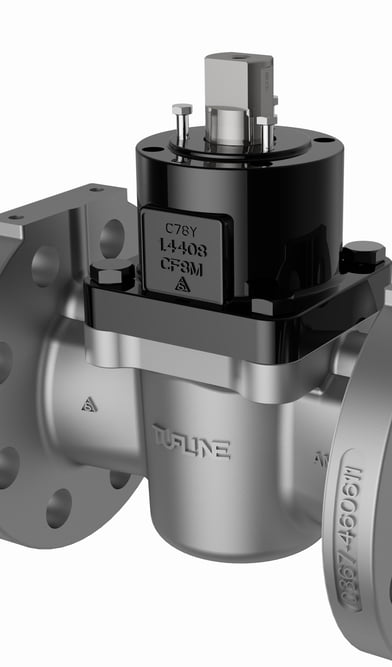

XOMOX® XP3

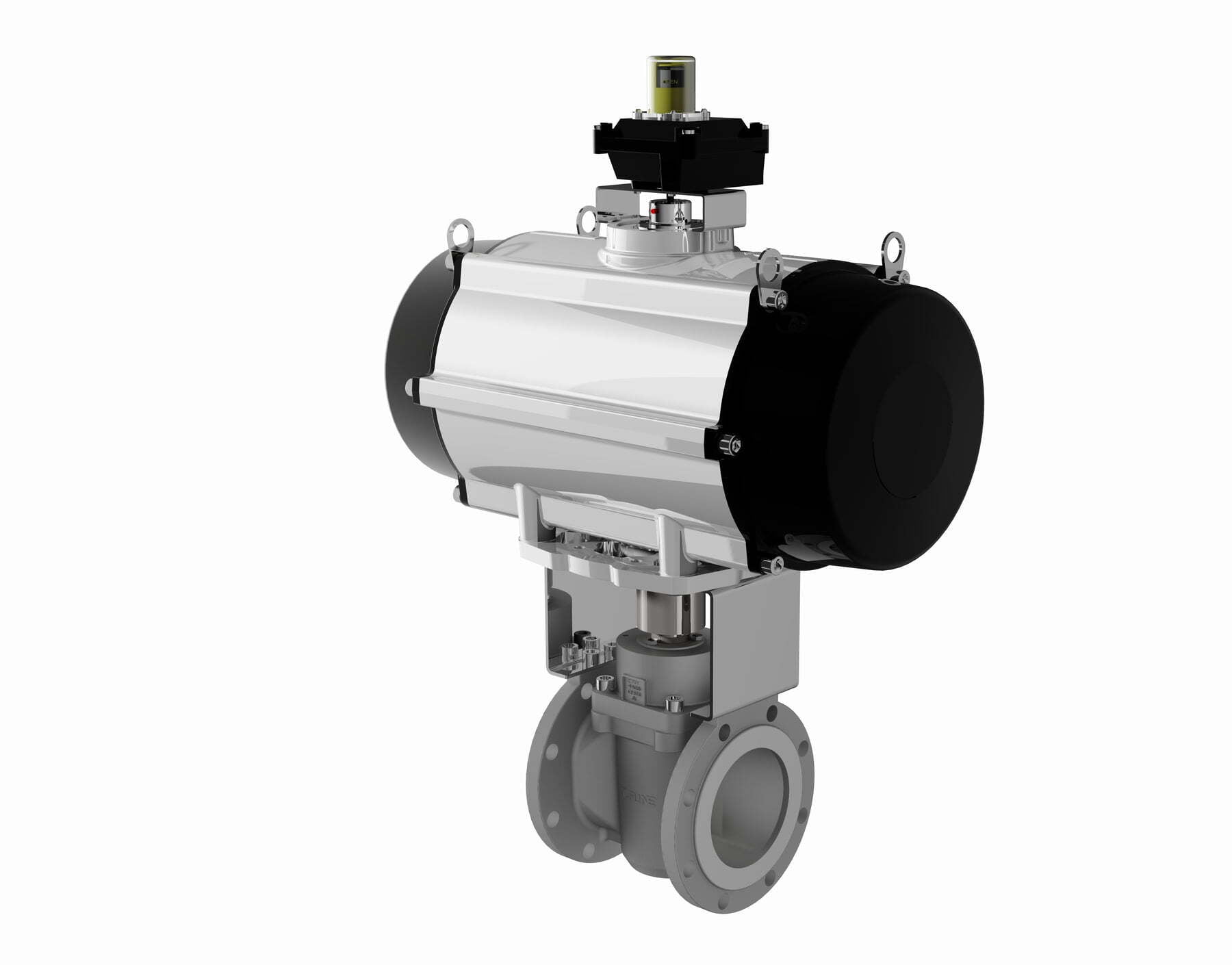

Actuator mounting capabilities per ISO 5211.
Flange pad design remains available per standard configuration.

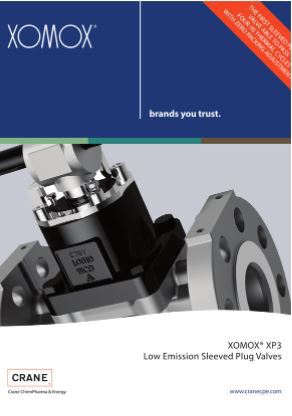

Download Brochure

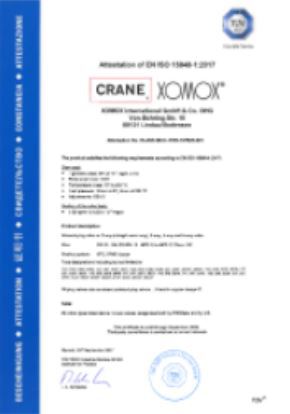

ISO 15848-1 Cretificate
