FEATURES AND BENEFITS
Innovative stem seal design permits best in class FUGITIVE EMISSIONS CONTROL (ISO 15848-1 BH CO3 392°F or 200°C SSA 0).
Live-loaded design optimizes sealing performance (self-adjusted) and extended service life with ZERO PACKING ADJUSTMENTS through thermal cycling.
MAINTENANCE and CAVITY FREE: No costly lubrication, no sticking, and no contamination of process media.
XOMOX® XP3 LIVE-LOADED STEM CARTRIDGE SEAL

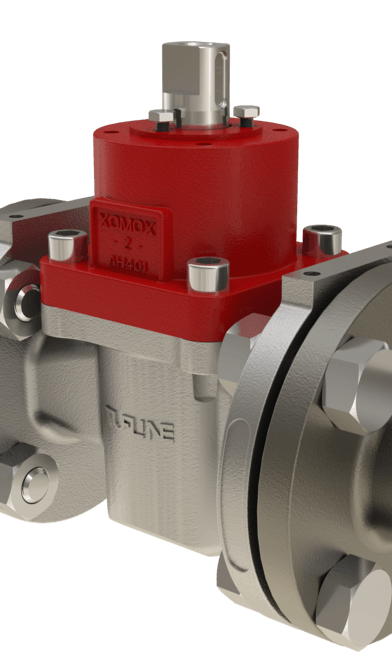

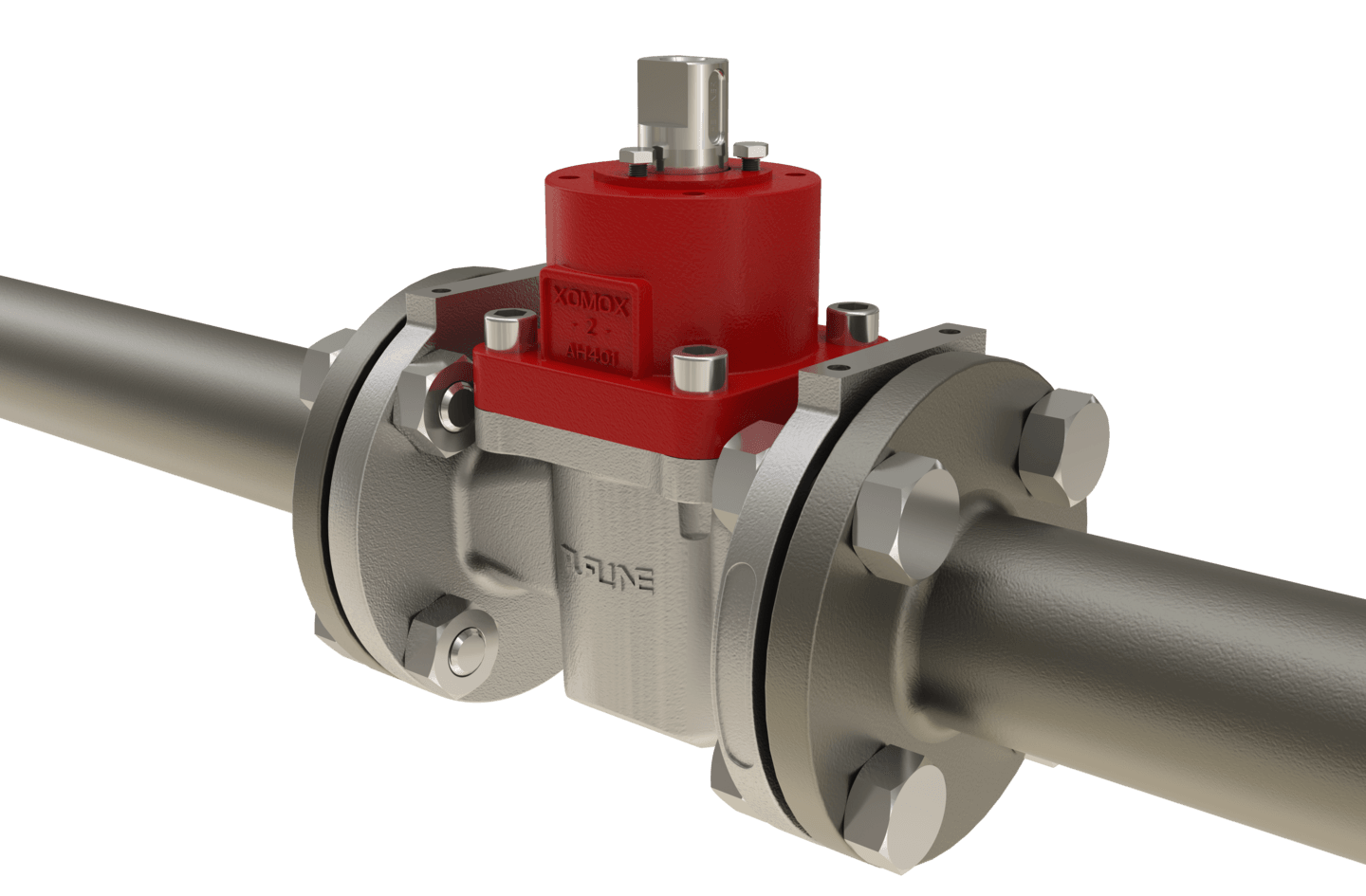

The new XOMOX® XP3 Soft Seated Sleeved Plug Valve incorporates a Live-loaded Stem Cartridge which enables to meet the most stringent emissions standards in the industry.
XP3 Sleeved Plug Valves are the first valves capable to pass all four thermal cycles without any packing adjustments, while meeting the ISO 15848-1 standard at the BH CO3 200°C/392°F SSA 0. The new XOMOX® valve top seal technology is able to perform in its entire temperature range even under thermal cycle conditions. This is achieved by the patented Live-loaded stem cartridge.
The XP3 design incorporates the same features and benefits of the standard XOMOX® Sleeve Plug Valve by being maintenance and cavity-free. These valves require no costly lubrication and prevent accumulation or contamination of process media, reducing maintenance costs and the cost of ownership over time.
1. PRIMARY SEAL TO ATMOSPHERE The XP3 utilizes the same proven sleeve and body design XOMOX® is known for. Its 360º port lips and high pressure ribs inside the valve body ensure tight in-line seal & primary seal to atmosphere. Plug remains adjustable if necessary.
2. SECONDARY SEAL TO ATMOSPHERE Enabled by the same wedge ring and plastic diaphragm design that is in place on our existing product, ensuring another layer of protection to stem seal and body cover joint.
3. TERTIARY SEAL TO ATMOSPHERE NEW patent-pending live-loaded stem cartridge delivers world class low E performance in a quarter-turn soft-seated plug valve.
4. PACKING OPTIONS Stem packing can be changed depending on operating conditions. Various packing options available.
5. PATENTED LIVE-LOADED STEM CARTRIDGE DESIGN Optimizes sealing integrity to atmosphere and extended service life.
OPTIONS Options for different packing materials to suit different temperatures and applications (392°F/200°C or 500°F/260°C); PTFE & graphite packing.
All current XOMOX® sleeve material options are available.
XP4D design; Option for an additional manual 4D stem seal which provides the same emissions performance as the XP3 configuration.
XP3 and XP4D are API 641 Group B and E approved.
Firetest according to API 607 7th edition.
