DEPA IonTec™
FEATURES

The Best of Both Worlds

DEPA IonTec™ Closed Surface Diaphragms Series nopped E4®

The innovative design eliminates the outer piston, reducing wear and extending diaphragm life. An integrated insert removes potential leak paths, enhancing safety for users and the environment. Maintenance is tool-free with handtightening, and the modular design ensures full compatibility across all DEPA IonTec™ pumps. A smooth surface minimizes impurity build-up, improving flow and energy efficiency

<--------

-------------->

------>

DEPA IonTec™ Diaphragm

Leakage Sensors

In the event of diaphragm rupture, the pumped fluid enters the pump chamber and activates the sensor. The sensor then transmits an electrical signal to the monitoring device for evaluation. Upon detection, the control unit disables the power supply to the pump’s drive system, thereby halting operation to prevent further damage or leakage.

DEPA IonTec™ Drive

Dead-head tolerant with adjustable flow designed to withstand closed discharge conditions without damage, this pump also offers variable speed control for precise flow adjustment - without the need for complex control systems.

‘BEST OF BOTH WORLDS – REDUCED ENERGY CONSUMPTION, BUILT ON THE ADVANCED DIAPHRAGM PUMP TECHNOLOGY’

Discharge Manifold

Identical to our DEPA® Air Operated Double Diaphragm range (modular) to make maintenance quick, easy, and cost-effective.

Suction Manifold

Identical to our DEPA® Air Operated Double Diaphragm range (modular) to make maintenance quick, easy, and cost-effective.

Center Block

Self standing design made for durability and maintenance-free operation.

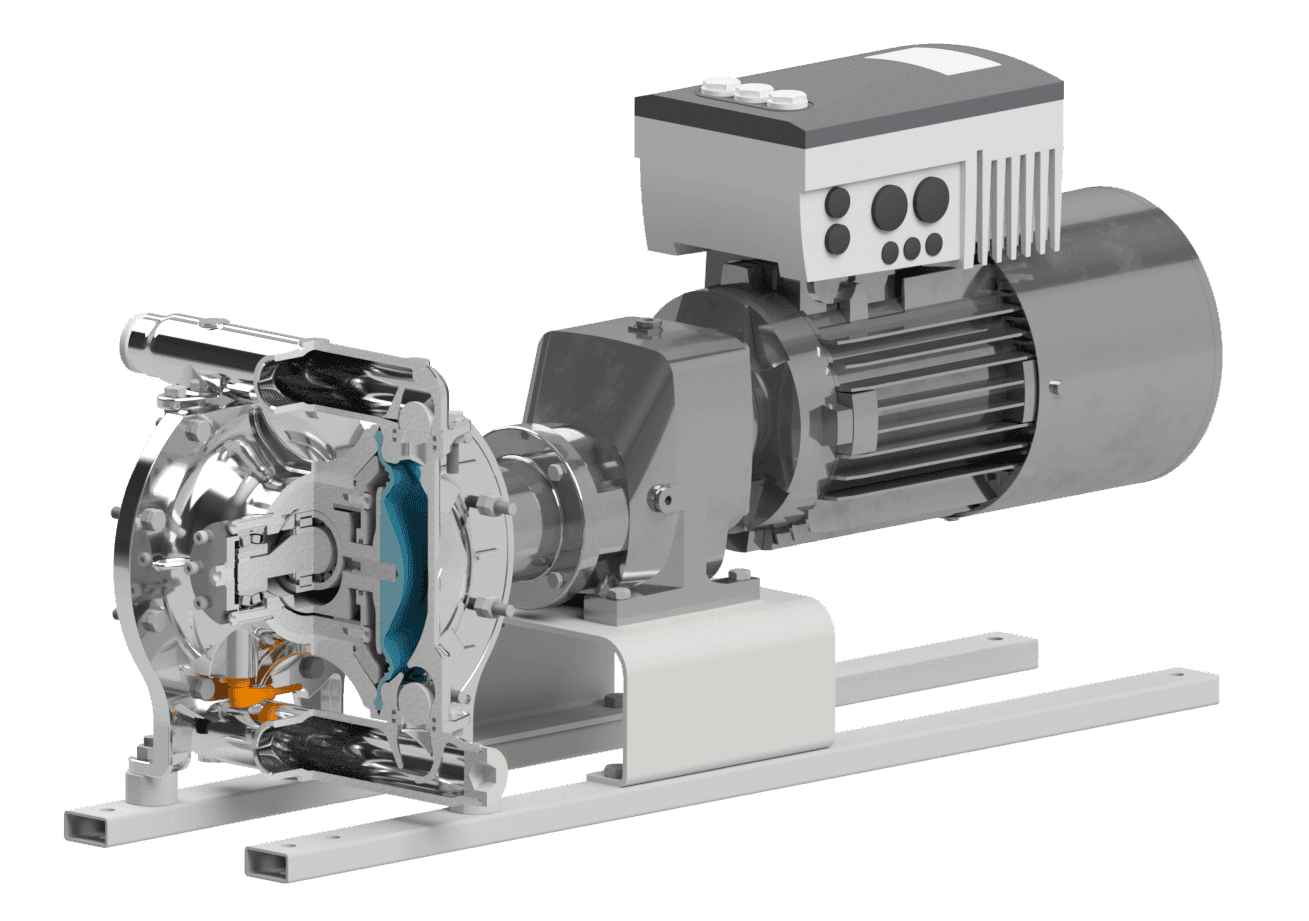

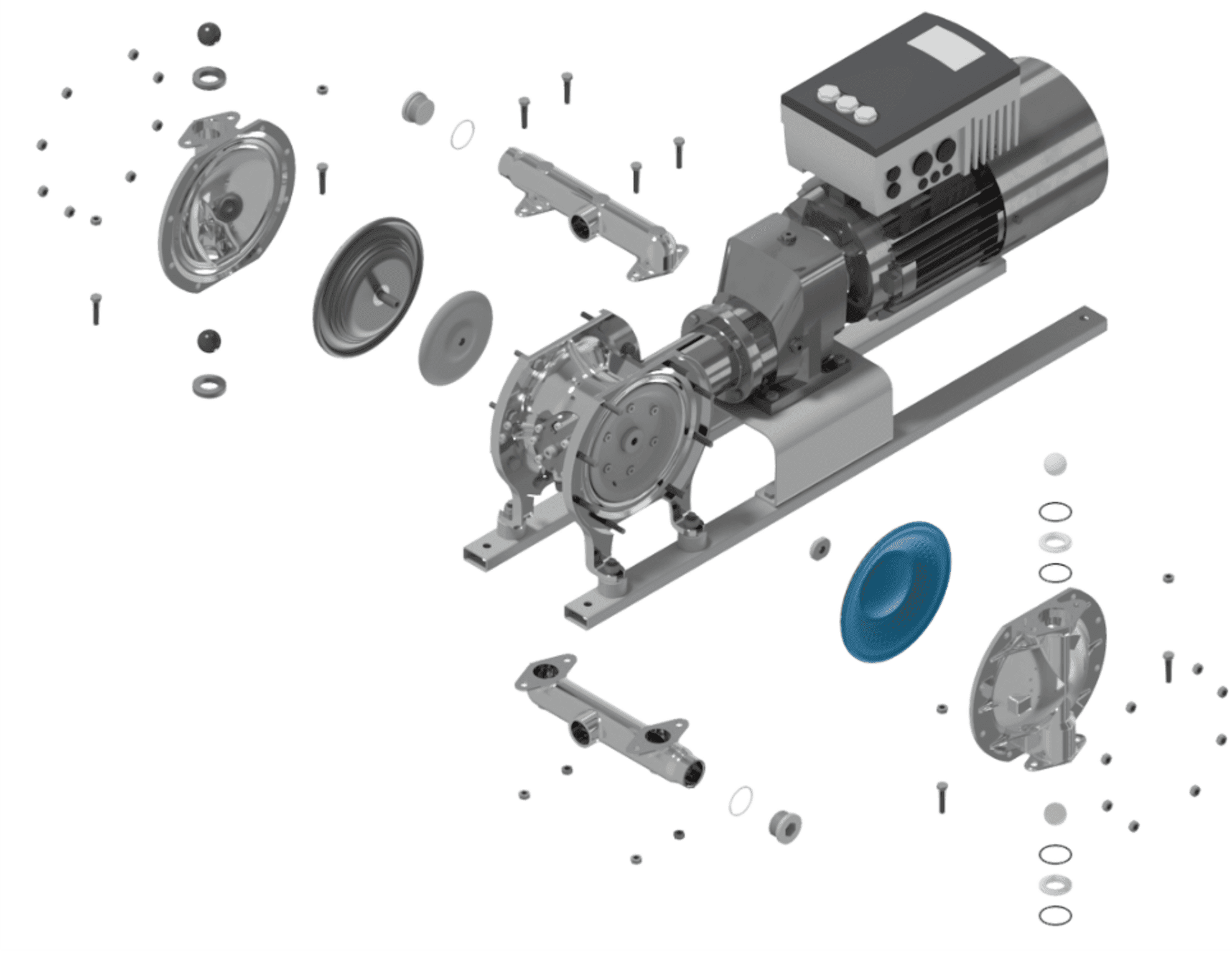

PUMP COMPONENTS

------------>

<----------

<-------------

-------------------------------------->

------------------------------------>

--------------------------------------->

Drive (Frequency Converter + Motor + Gearbox)

Maximize energy efficiency without compromising performance as well as providing the against closed valve conditions without damaging pump or environment

Diaphragms

Closed surface diaphragms are shared spare parts with our DEPA® Air Operated Double Diaphragm Pumps

Pump Chamber

Taken from the modular design of our DEPA® range to make maintenance quick, easy, and cost-effective.

Frame

Safe and easy handling/ installation of complete pump unit
