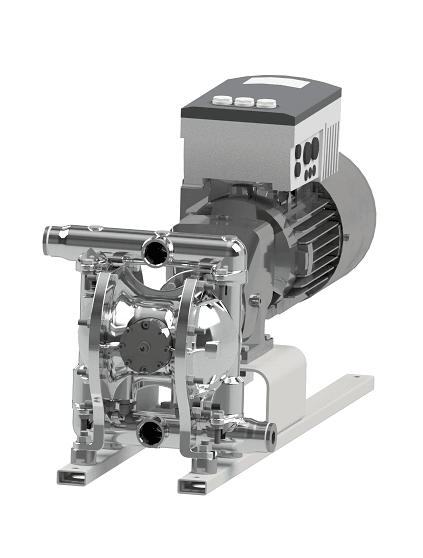

DEPA IonTec™
FEATURES

Main Body Features

ENERGY EFFICIENCY

Maximize energy savings and cut operational costs with every cycle. The DEPA IonTec™ is engineered for minimal power consumption without compromising performance.

EASE OF MAINTENANCE

Designed for simplicity. Its modular build and shared spare parts with our DEPA Air Operated Double Diaphragm Pumps (AODDP) range make maintenance quick, easy, and cost-effective.

ELIMINATES RISK

This seal-less design in combination with DEPA® nopped E4® closed surface diaphragms, can run dry with exceptional dead-head tolerance without damaging pump or environment.

BENEFITS

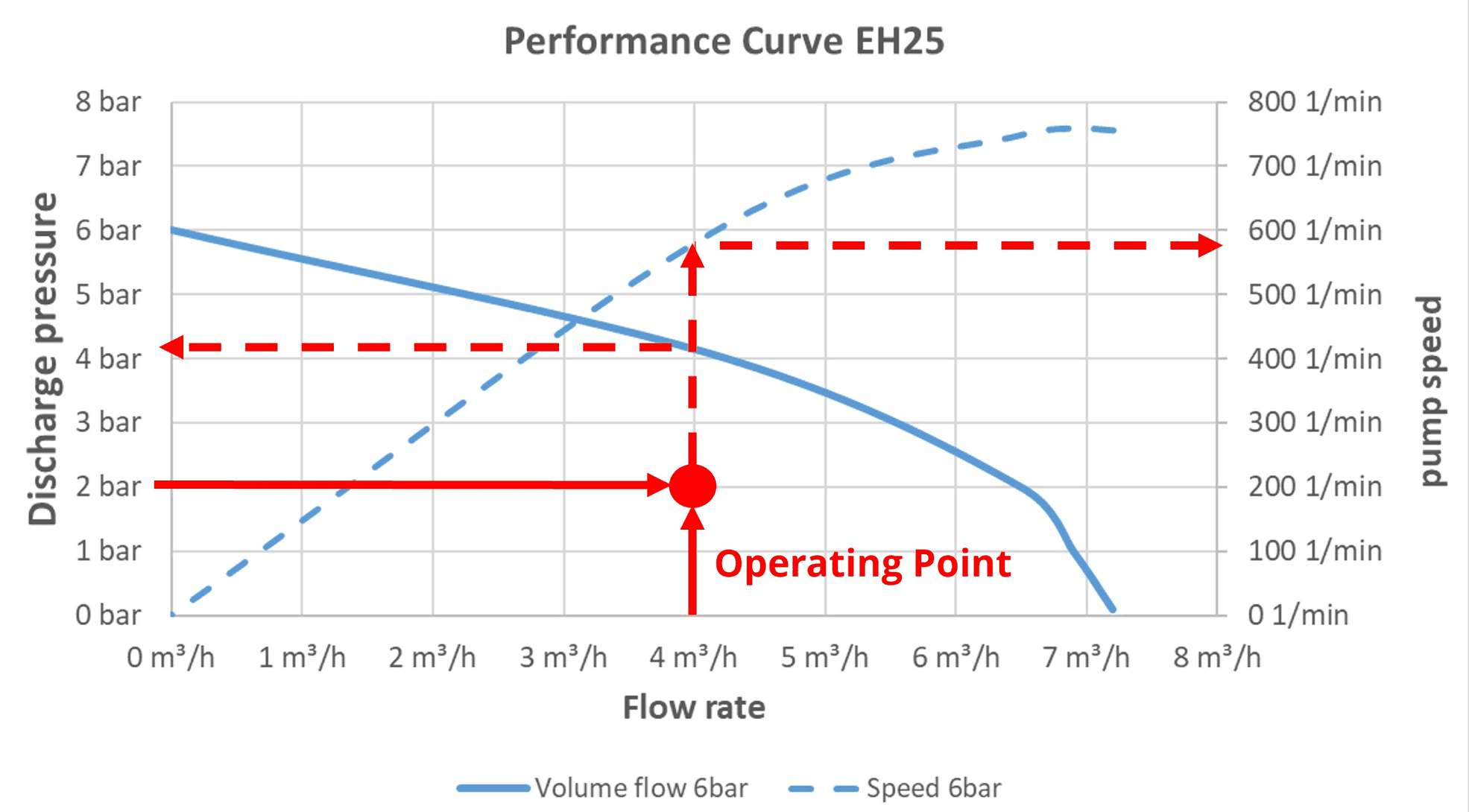

PERFORMANCE CURVE

Example for Pump Selection:

A flow rate of 4 m³/h is required at a delivery pressure of 2 bar. For this application, pump size EH25 is recommended. The required pump speed is 580 rpm.

If the pressure requirement increases to 4 bar, the speed reduction (Dead-Head Control) begins.

When the maximum pressure of 6 bar is reached, the pump stops automatically.
